How to Assign an Access Control (RFID, Key FOB, Proximity Card, Barcode, PIN, or Mobile Credential) from Host Settings

How to Assign an Access Control (RFID, Key FOB, Proximity Card, Barcode, PIN, or Mobile Credential) from Host Settings

As an administrator of the TekControl Portal, there may be instances where you will need to add an access control credential for an existing host. In order to do so, you will need to be a site administrator or higher to access this feature.

Logged in as a Site Administrator or higher user, access the TekControl Web Portal.

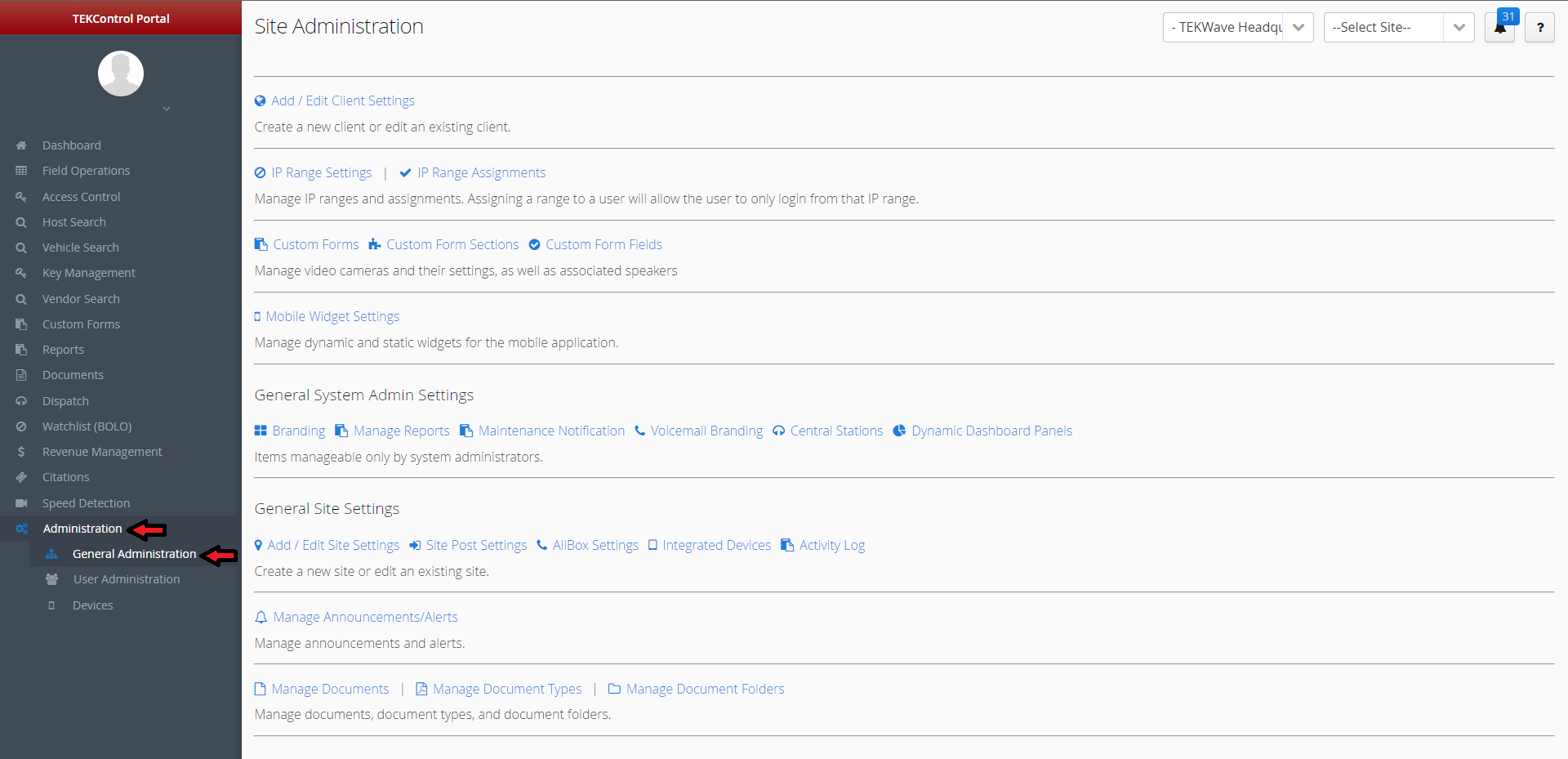

In the navigation bar, click on Administration, which will give you a drop-down where you can access General Administration. Click on General Administration to be brought to the Site Administration page.

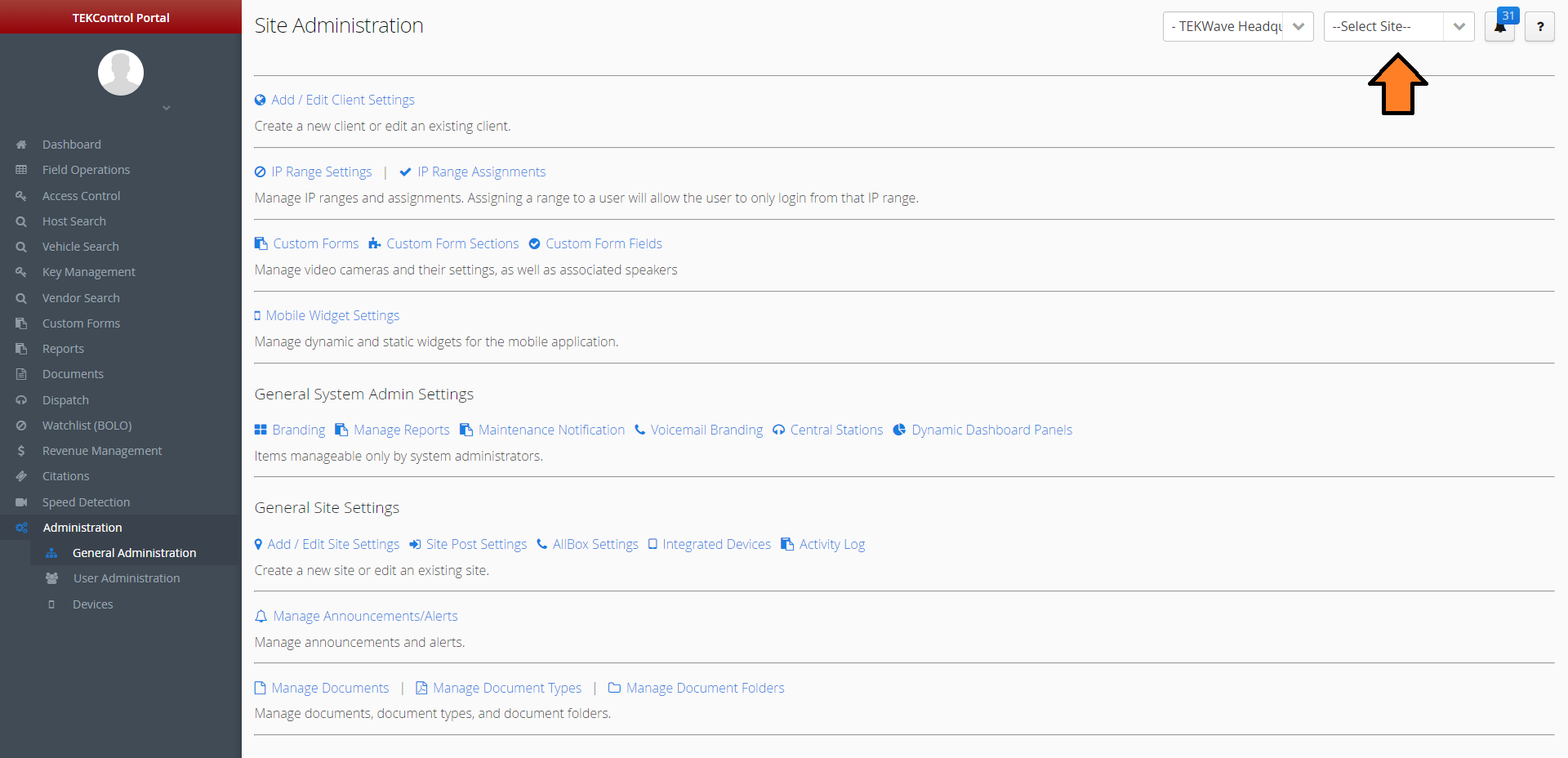

If you are a client administrator, you will need to select the specific site in the top right.

You are now on the general site administration page.

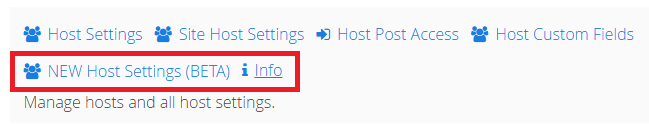

Scroll down to Host Settings

The sidebar will now appear on the right with Host Information.

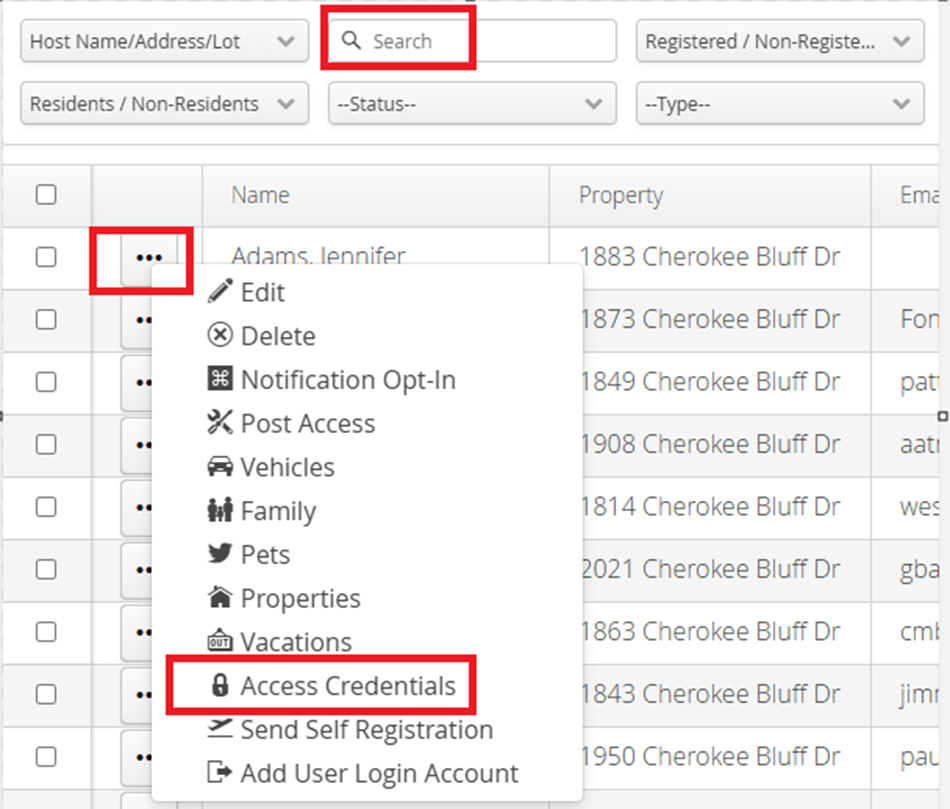

You may type the name of the host in the "--Add New Host--" section to search for the host/resident.

If the host exists, their name (and address associated) will appear in the dropdown.

Click on their name to bring up their Host Information.

If the host is not listed, you will need to add the host by entering their information below:
- First Name
- Last Name
- Any Additional information

Once information is entered, scroll down in the sidebar and hit save to add the new host.

Find the Access Credential tab in the top bar. On smaller screens, you may need to click the arrows on the right to locate it.

This is the Access Credential information page.

Clicking on the dropdown of Credentials allows you to select an existing credential to edit or the option to add a new credential.

To add a credential, select the Add New Credential option which is selected by default.

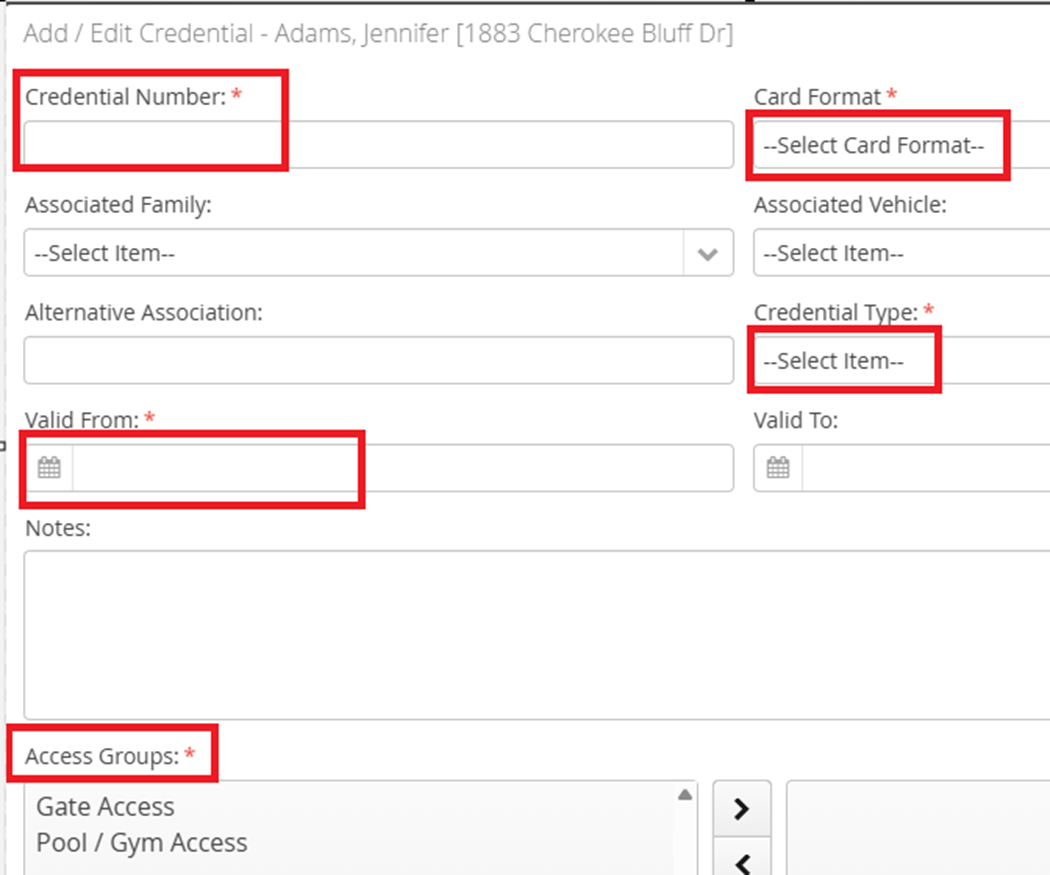

Requirements for a valid Access Credential:

- Credential Number*

- Credential Format**

- Credential Type

- Valid From Date Time

- Access Group

* Note: Many credentials will start with SN or will have 3 digits (027) in front of the credential number.

** Note 2: It may depend on your installation, you may see your associated FC (Facility Code) here along with the card format.

Make sure to click the Active Checkbox to enable Access Credential!

You may also fill in the optional fields:

 - Valid To Date Time

- Associated Family

- Associated Vehicle

- Alternative Association

- Notes

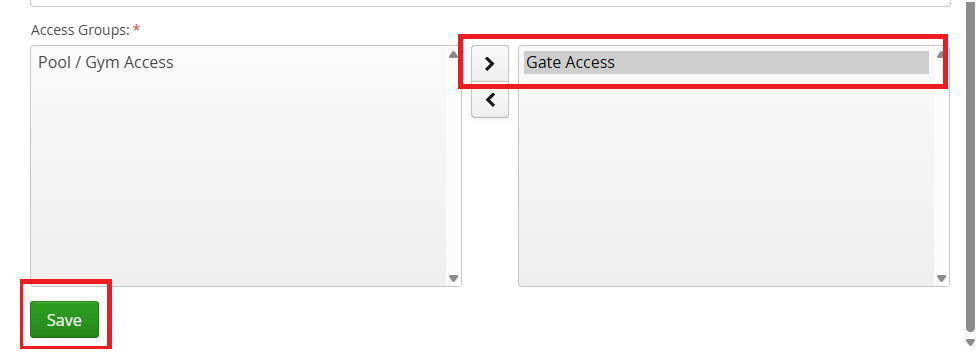

Once the information is filled in, make sure to hit save to preserve the changes.

The credential will automatically be saved in the system and pushed to the Access Control.
